Features:

◎ 3030 SMD LED with low attenuation and long life;

◎ 130 lm/W luminous efficiency;

◎ 90% Energy saving replacement;

◎ Free-tool maintenance;

◎ UL, CE, RoHS compliant

Applications:

◎ Suitable for roadway, pathway, outside parking lot, rural road, car dealership, etc..

Warranty:

◎ 5 years

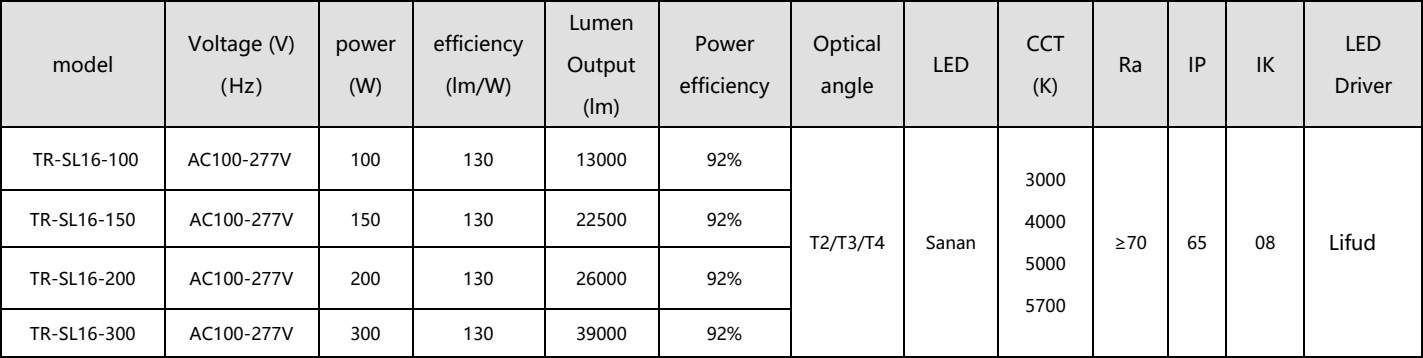

Product Parameters:

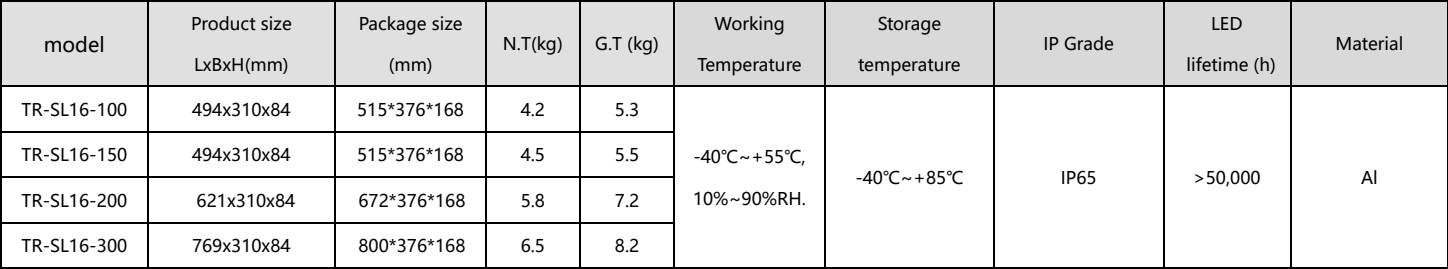

Working environment and packaging

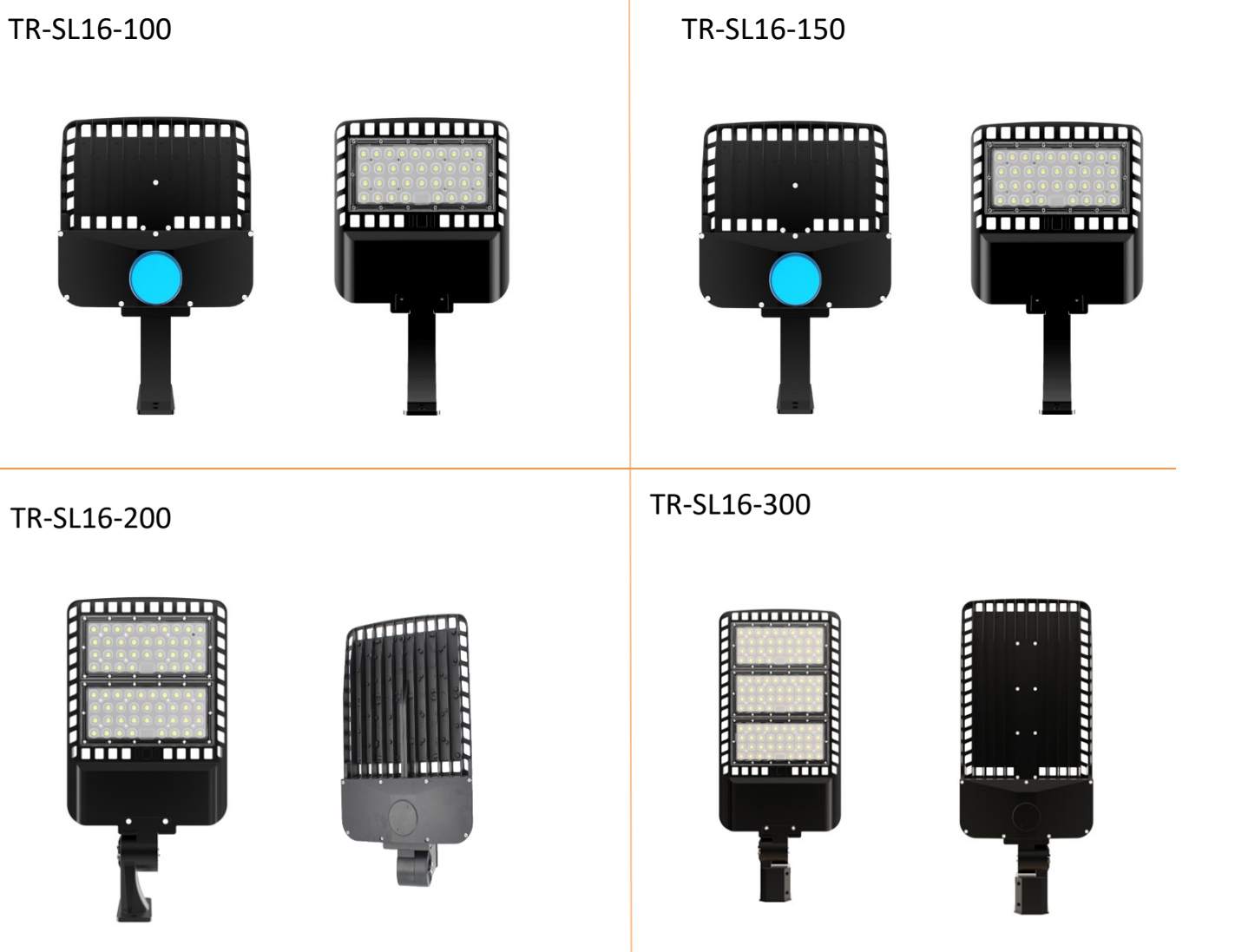

Shape and structure

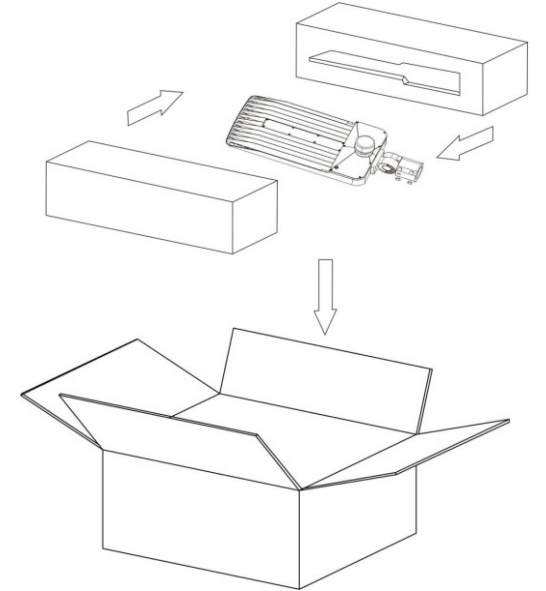

Packaging diagram:



Declaration:

◎This product mustn't be soaked in water, to avoid it being damaged.

◎ If the external flexible cable of light box is damaged, please replace it by its manufacturer or its service agent or qualified person to avoid a hazard.

◎The specific installation and cautions please refer to the user manual.

◎ The given data in this specification is based on our standard product. There may be existed slight difference compared with actual products.

◎All Illustrations in this specification are for reference only.

◎This product is subject to change or modify without prior notice.

◎ Tuorun Optoelectronics Co., Ltd reserves the right of final explanation for this specification.

serial number	name	product image	unit	Specifications
1	Shoe box light 100W		PCS	Shoe box lamp, single-mode group, brown shell, color temperature 2700-4000-5000K, 100W, 100-277V, lifud power supply, 3030 LED beads, 130lm/w, Ra70, 5-year warranty; Lens angle T3M The exposed length of the outgoing line is 20CM, equipped with an A mounting head
2	Shoe box light 150W		PCS	Shoe box lamp, single-mode group, brown shell, color temperature 2700-4000-5000K, 150W, 100-277V, lifud power supply, 3030 LED beads, 130lm/w, Ra70, 5-year warranty; Lens angle T3M The exposed length of the outgoing line is 20CM, equipped with an A mounting head
3	Shoe box light 200W		PCS	Shoe box lamp, two modules, brown shell, color temperature 2700-4000-5000K, 100W, 100-277V, lifud power supply, 3030 LED beads, 130lm/w, Ra70, 5-year warranty; Lens angle T3M The exposed length of the outgoing line is 20CM, equipped with an A mounting head
4	Shoe box light 240W		PCS	Shoe box lamp, three module, brown shell, color temperature 2700-4000-5000K, 100W, 100-277V, lifud power supply, 3030 LED beads, 130lm/w, Ra70, 5-year warranty; Lens angle T3M The exposed length of the outgoing line is 20CM, equipped with an A mounting head
5	Shoe box light 320W		PCS	Shoe box lamp, three module, brown shell, color temperature 2700-4000-5000K, 100W, 100-277V, lifud power supply, 3030 LED beads, 130lm/w, Ra70, 5-year warranty; Lens angle T3M The exposed length of the outgoing line is 20CM, equipped with an A mounting head

1. The quotation includes tax but does not include shipping.

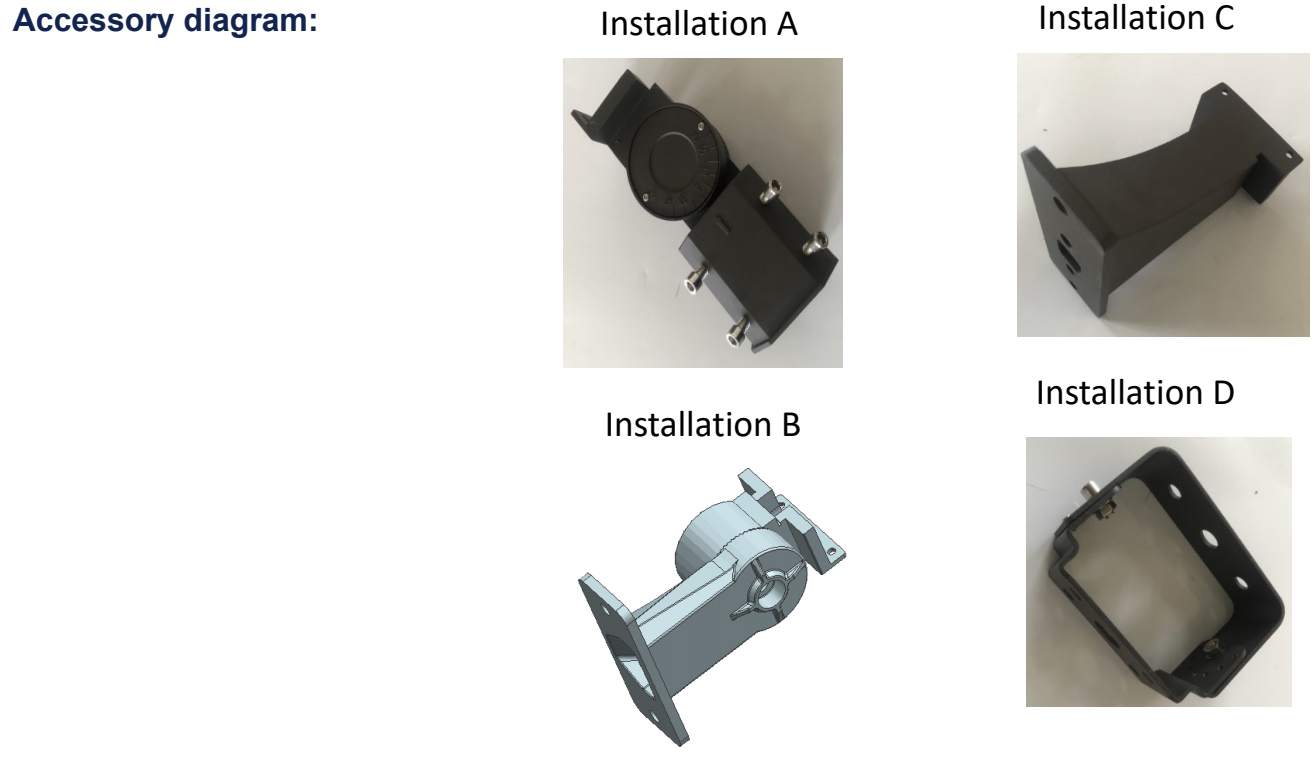

2. 2. It includes A installation head and can be selected as B/C/D installation head
