● Visual comfortable light comes from a simple contour.

● Best choice for replacing fluorescent lamps with high efficacy.

● Voltage is 120-277V & 347/480V.

● PIR sensor is optional and supports Emergency Battery.

● Standard 0-10V/1-10V dimming.

● Optional for Power Adjustable.

Applications:

Suitable for commercial, retail and institutional applications including gymnasiums,factories and warehouses

Warranty:
◎ 5 years

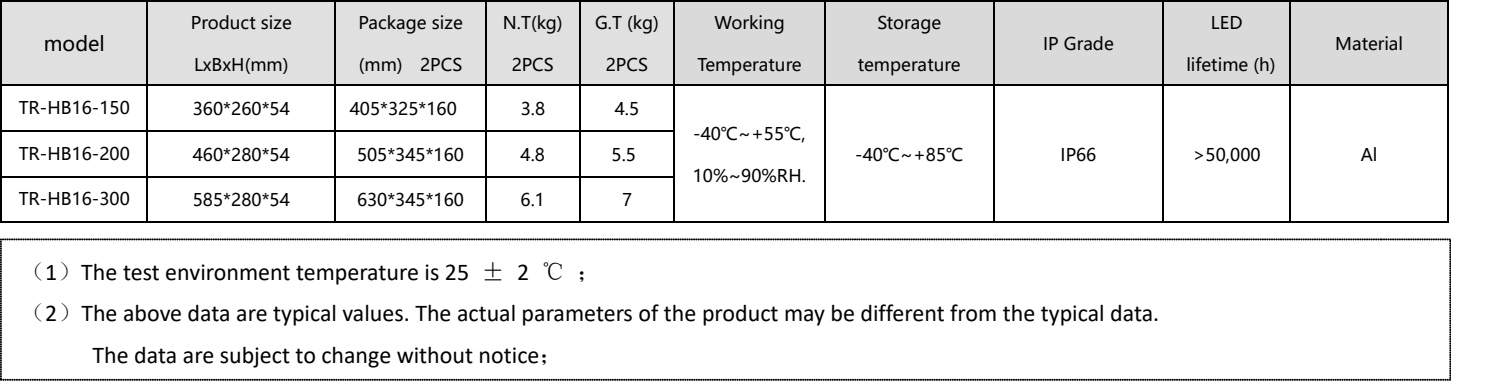

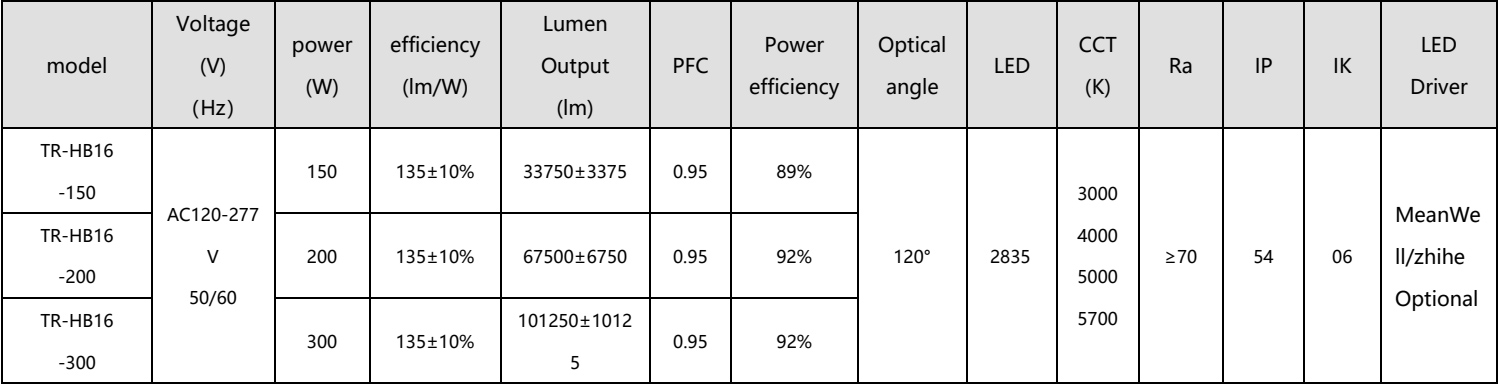

Product Parameters:



Working environment and packaging



Shape and structure

TR-HB16-150(360*260*54mm)

TR-HB16-300(460*280*54mm)

Dimensional drawing:

TR-HB16-300(585*280*54mm)

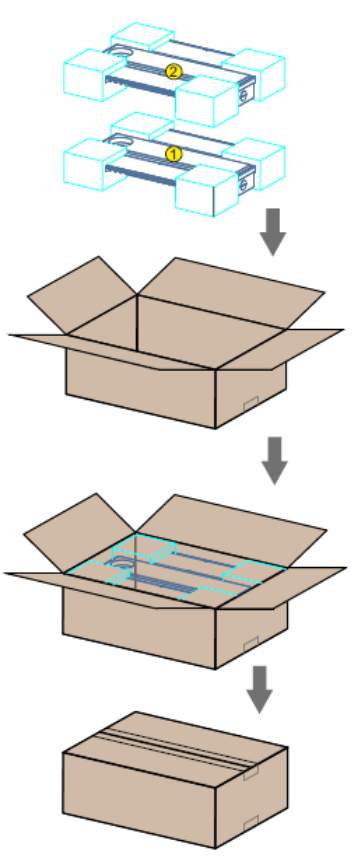

Packaging diagram:

◎If the external flexible cable of light box is damaged, please replace it by its manufacturer or its service agent or qualified person to avoid a hazard.

◎The specific installation and cautions please refer to the user manual.

◎The given data in this specification is based on our standard product. There may be existed slight difference compared with actual products.

◎All Illustrations in this specification are for reference only.

◎This product is subject to change or modify without prior notice.
