Third generation Area light-Shenzhen RLITE technologies Co.,ltd

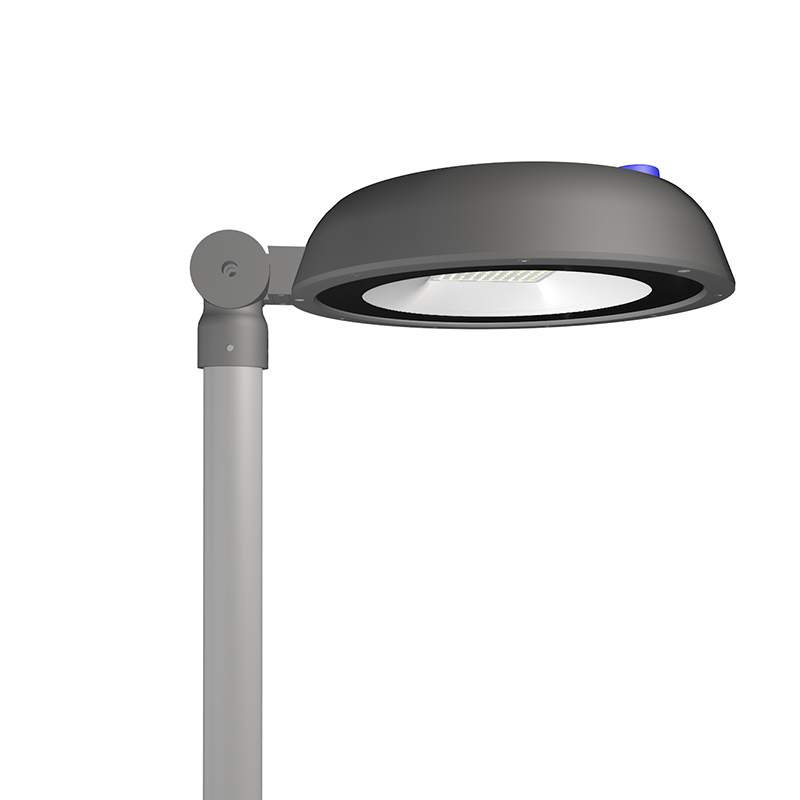

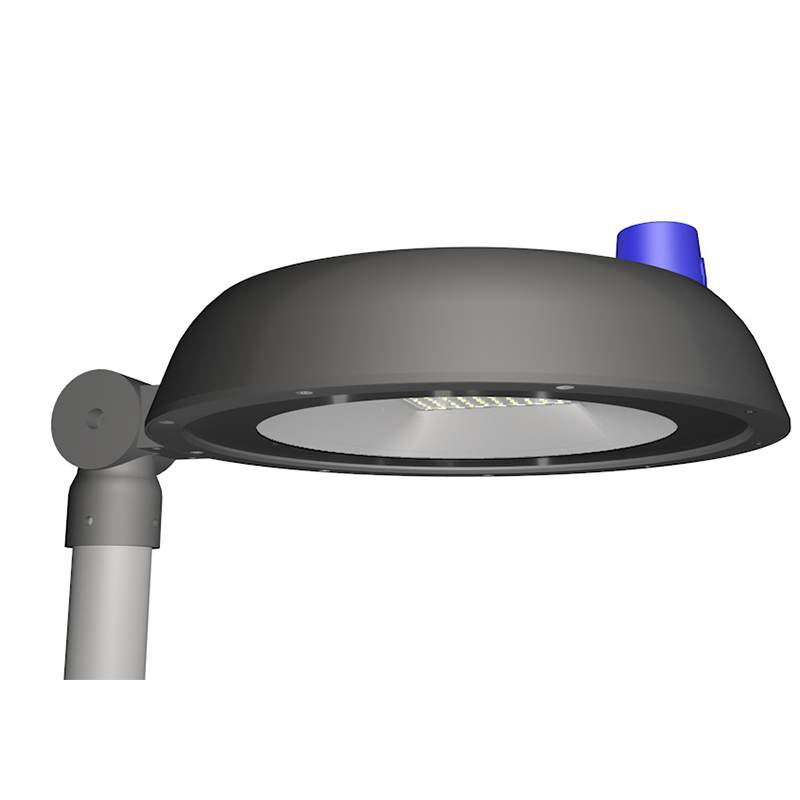

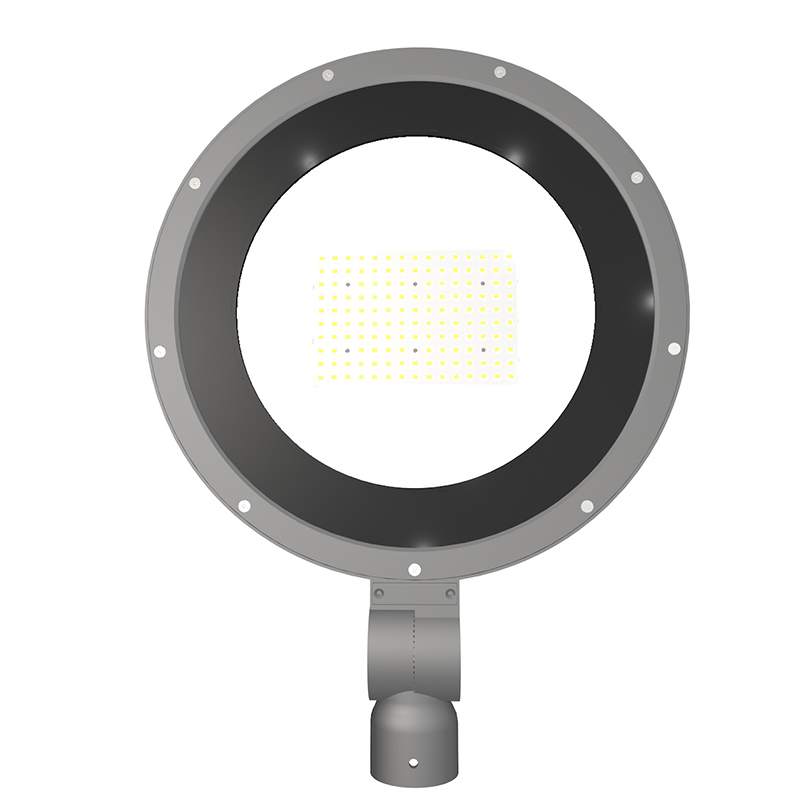

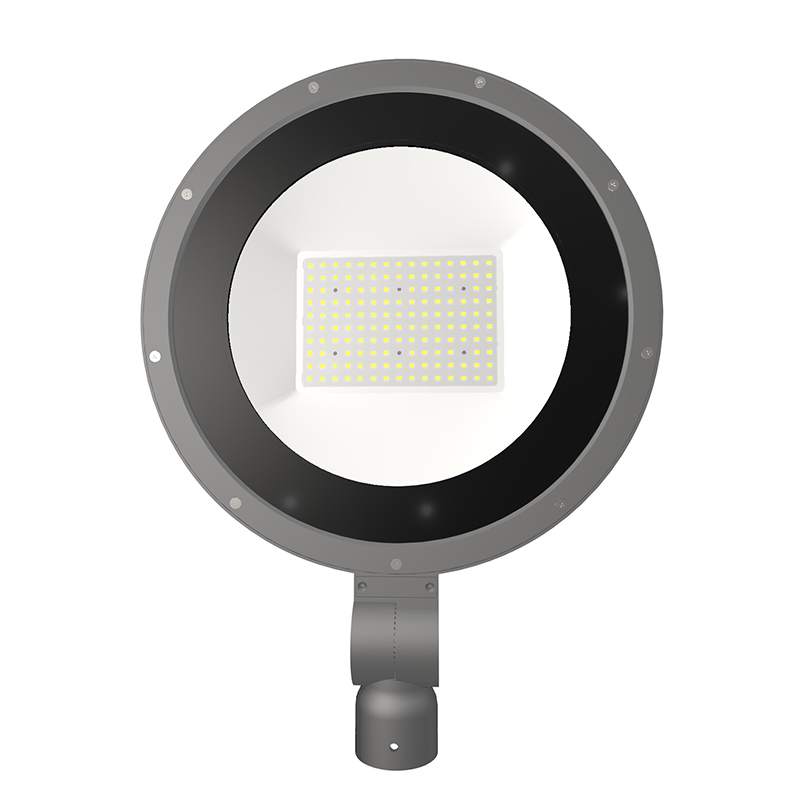

Third generation Area light

LUMINAIRE

• Die-cast aluminium body (EN47100).

• Double layer polyester powder paint resistant to corrosion and salt spray fog.

• Silicone rubber gaskets.

• AISI 316 stainless steel external screws.

• Wiring on removable galvanized steel tray.

• Driver protected against voltage surges up to 10kV.

• Screen made of 4mm thermal-shock resistant tempered glass.

• High quality LED sources characterized according to IESTM-30 , with high color consistency <3SDCM and long useful life > 60000 hours at L80.

• It complies with standards EN 60598-1 and EN 60598-2-3.

INSTALLATION

• Post-top installation (Ø60mm reduction).

• Supplied with power cable ended(0.3m)

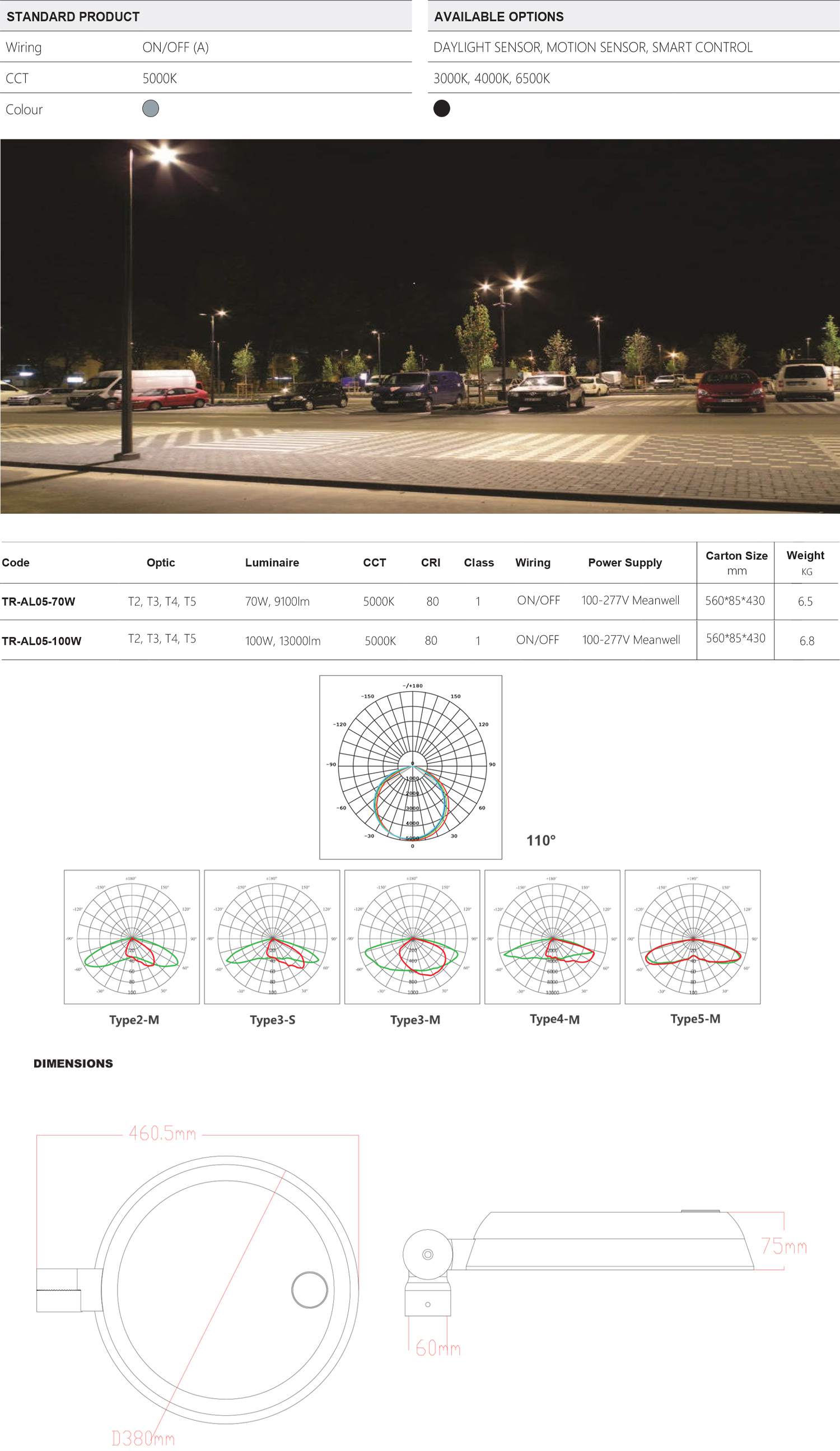

description	power	power supply	Optional accessories	remark
Product size: Φ 380 * 75mm, 2835 LED beads, color temperature: 3000-6000K, light efficiency of 130lm/w, emission angle of 120 °, color rendering index>70, IP66，IK08，100-277V	40W	Mingwei XLG	1. Optional T2/T3/T4 emission angle, increased by 1.2 USD/PCS 2. Optional light control, increased by 3.8 yuan/PCS 3. Optional 10KV lightning protection, increased by $2.5 per PCS	Mingwei XLG/five-year warranty
	75W
	100W
